Model VS-1 Features and Specifications
-
The
Valve Seat cutter is ideal for re-surfacing of the valve seat
surfaces on most types of valves. The valve seat surfaces on most

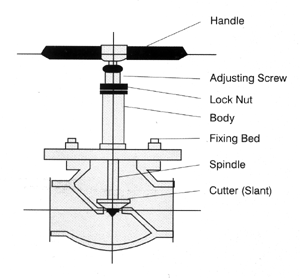

types of valves. The valve seat is assembled as illustrated as fixed
to the valve body by means of the fixing bed. After aligning the
spindle carefully, the cutter operation can begin by applying
pressure on the handle while rotating slowly clockwise.
-
The
valve seat cutter is supplied with five standard cutter sizes
i.e.;1,2,3,4, and 5 inch sizes. Cutters have cutting edges on both
sides one side being slant and the othe flat.
-
The
valve seat cutter is supplied in a metal carry case.
-
Cutters
are made from special High Speed Steel for cutting edge retention
over prolonged use.
|
Valve
Seat Cutter Model VS-1
Cutters have two cutting Surfaces, Flat
and Slant |
