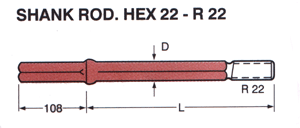

 Extension Drilling R 22 (7/ 8")

	Dimensions				PART NO.
	L		D
	mm	ft          in	mm	in
			35	1 3/8	R22-100-35
			38	1 1/2	R22-100-38
			41	1 5/8	R22-100-41
			45	1 3/4	R22-100-45
			48	1 7/8	R22-100-48
	800	2    -    7	22	7/8	R22-600-08
	1200	3    -    11	22	7/8	R22-600-12
	1600	5    -    3	22	7/8	R22-600-16
	2400	7    -    10	22	7/8	R22-600-24
	3200	10    -    6	22	7/8	R22-600-32
	140	5 1/2	31	1 7/32	R22-500-31
	255	10	22	7/8	R22-400-03
	800	2    -    7	22	7/8	R22-400-08
	1000	3    -    3	22	7/8	R22-400-10
	1200	3    -   11	22	7/8	R22-400-12
	1600	5    -    3	22	7/8	R22-400-12
	1800	5   -    11	22	7/8	R22-400-18
	2000	6    -    6	22	7/8	R22-400-20
	2400	7   -    10	22	7/8	R22-400-24
	3000	10	22	7/8	R22-400-30

 Extension Drilling R 25 (1")

	Dimensions				PART NO.
	L		D
	mm	ft          in	mm	in
			38	1 1/2	R25-100-38
			41	1 5/8	R25-100-41
			45	1 3/4	R25-100-45
			48	1 7/8	R25-100-48
			51	2	R25-100-51
	900	3	25	1	R25-600-09
	1200	4	25	1	R25-600-12
	1525	5	25	1	R25-600-15
	1830	6	25	1	R25-600-18
	2435	8	25	1	R25-600-24
	3050	10	25	1	R25-600-30
	150	5 7/8	36	1 7/16	R25-500-36
	800	2    -    7	25	1	R25-400-08
	1200	3    -    11	25	1	R25-400-12
	1600	5    -     3	25	1	R25-400-16
	2400	7    -    10	25	1	R25-400-24
