| CHIPPING
HAMMERS |
You are here : > > > Chipping Hammers
| Application:
The CHP series of
chipping hammers are available with or without retaining mechanism and
come in a variety of sizes combining mechanism and come in a variety of
sizes combining weight and power for optimum operator comfort.
These hammers are used by
industries such as:
- Fabrication :
For beveling and chamfering of heavy plates prior to welding.
- Foundry and forge
shops : For fettling and gouging.
- Construction
: As a utility chipper to chip cement adhering to plant and
vehicles. Also used to roughen and prepare concrete for subsequent
applications.
- General industry:
used as a utility chipper.
Features
- All forged steel
construction-tough and durable
- Teasing throttle
standard- A
|
 |
Technical Specifications
| Model |
Net
Weight Kgs |
Overall
Length mm |
Shank
Type |
Piston
Dia mm |
Piston
Stroke
mm |
Frequency
bpm |
Retention
Type |
Air
Consumption meter cube/min |
| CHP1 |
5.9 |
320 |
0.580
Hex A/F |
29 |
25 |
2850 |
No |
0.75 |
|
CHP2 |
6.4 |
355 |
0.580
Hex A/F |
29 |
50 |
2450 |
retention |
0.83 |

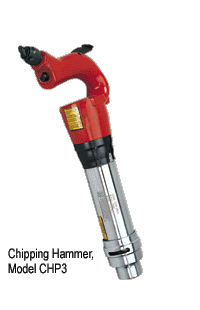

| CHP3 |
6.8 |
390 |
0.580
Hex A/F |
29 |
75 |
2050 |
|
0.90 |
| |
| CHP1
RND |
5.9 |
320 |
0.680
Round |
29 |
25 |
2850 |
No |
0.75 |
|
CHP2 RND |
6.4 |
355 |
0.680
Round |
29 |
50 |
2450 |
retention |
0.83 |
| CHP3
RND |
6.8 |
390 |
0.680
Round |
29 |
75 |
2050 |
|
0.90 |
| |
| CHP1R |
6.4 |
360 |
0.580
Hex A/F |
29 |
25 |
2850 |
Oval
Type |
0.75 |
|
CHP2R |
6.9 |
395 |
0.580
Hex A/F |
29 |
50 |
2450 |
'R'
Retainer |
0.83 |
| CHP3R |
7.3 |
430 |
0.580
Hex A/F |
29 |
75 |
2050 |
|
0.90 |
| |
| CHP1R-RND |
6.4 |
360 |
0.680
Round |
29 |
25 |
2850 |
Oval
Type |
0.75 |
|
CHP2R-RND |
6.9 |
395 |
0.680
Round |
29 |
50 |
2450 |
'R'
Retainer |
0.83 |
| CHP3R-RND |
7.3 |
430 |
0.680
Round |
29 |
75 |
2050 |
|
0.90 |
Note: Newer retention methods are under
development and finalization . Ask for details
Standard Equipment:
Adaptor
